Wave Tank /

Wave Tank Full Length 2 -

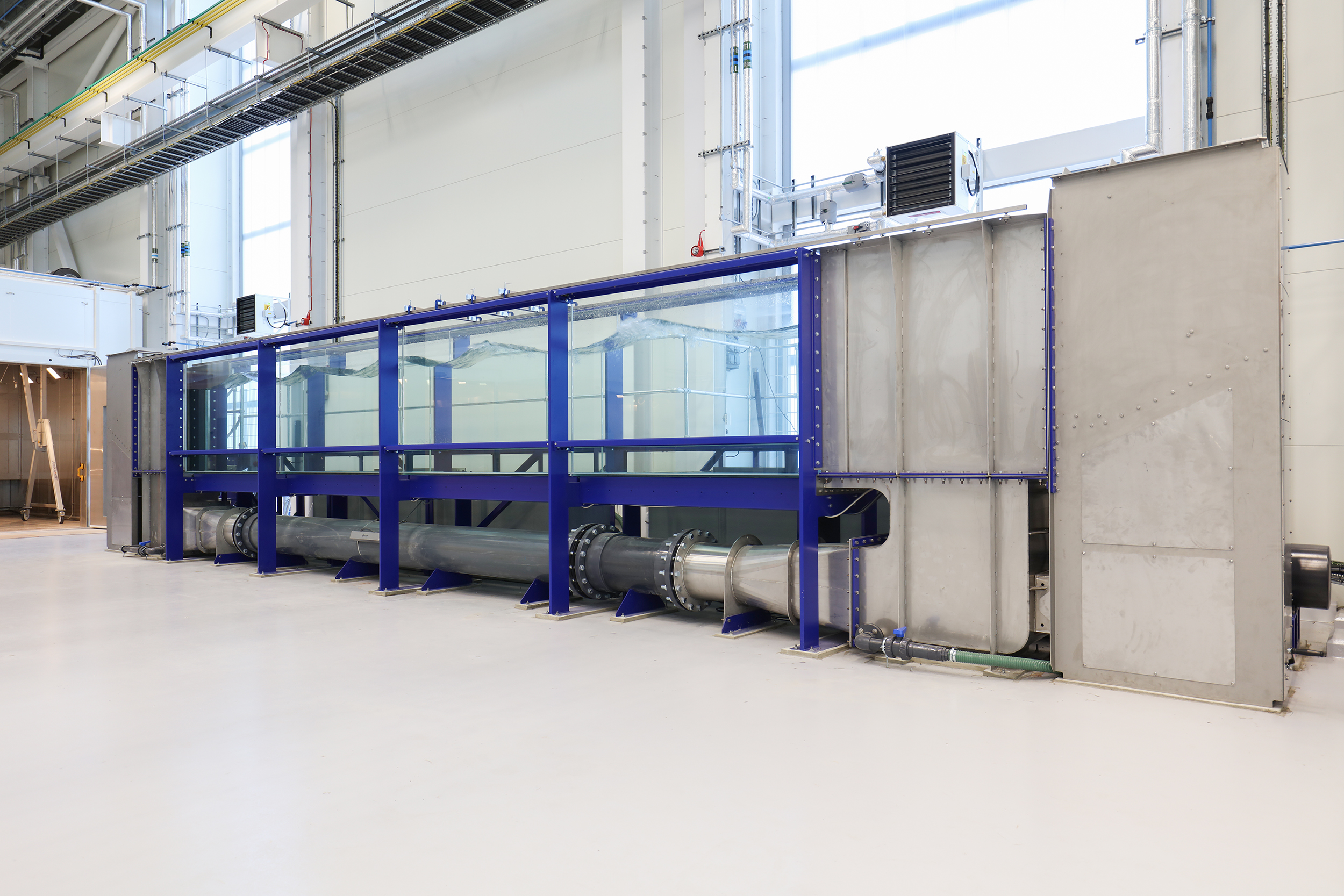

The LVV contains a precision, glass-sided wave tank. The tank features a flap wave generator at each end enabling simulation of representative deep water waves. The tank sides consist of 25mm toughened glass with steel side rails ensuring cross-sectional uniformity. Software enables the simulation of sine waves, multi-spectral seas and perform demonstrations of special effect waves. The software allows a single computer to synchronise wave generation with data collection and trigger experimental rigs.

Width of working section 0.5m
Design water depth 1.0m
Depth of working section 1.5m
Length of working section 12m
Wave height Max 0.28m (Peak to Trough)
Flow velocity 0.4m/s
