Data Acquisition Equipment /
A range of industry standard data acquisition equipment enables a full range of dynamic testing and analysis.
The LMS SCADAS system offers industry leading signal acquisition and conditioning hardware in a rugged, IP32-rated mobile chassis. The hardware is supported by a comprehensive suite of software (Test.Lab) enabling a full range of testing from fundamental spectral and modal analysis through to Ground Vibration and Military Standard testing. The NI system offers the flexibility to perform a wide range of testing from low to high channel counts (up to 129 IEPE accelerometer inputs), with the flexibility to programme test campaigns and implement bespoke analysis through the LabVIEW software package.
Siemens LMS SCADAS Mobile Data Acquisition System
| Equipment type | Quantity | Description |
|---|---|---|
| Analogue ICP/IEPE input channels | 64 | Input range: ±10 V 24-Bit analogue-to-digital conversion Simultaneous sample rate: 204.8 kHz |
| Analogue output channels | 6 | Input range: ±10 V 24-Bit analogue-to-digital conversion Excitation band width: up to 40kHz |

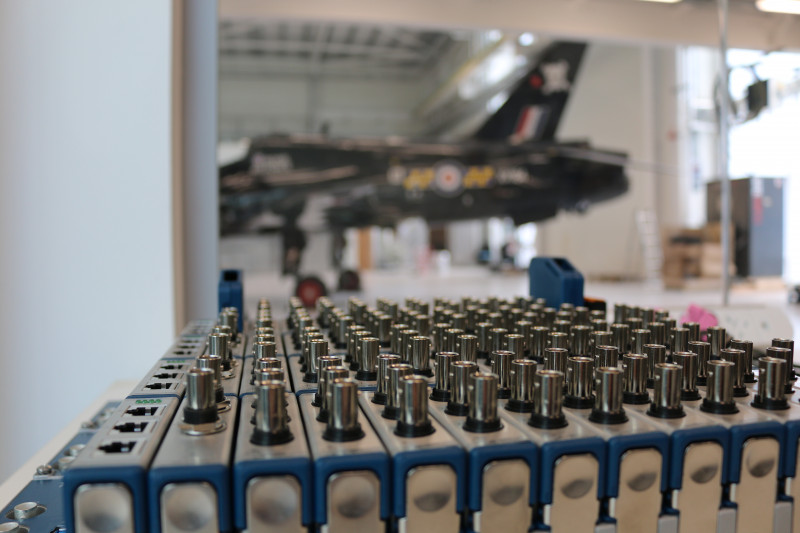

National Instruments Data Acquisition System
| Equipment type | Quantity | Description |
|---|---|---|
| cDAQ-9179 14-slot chassis | 4 | A selection of chasses enabling flexible testing at high and low channel counts |
| cDAQ-9178 8-slot chassis | 1 | A selection of chasses enabling flexible testing at high and low channel counts |
| NI-9469 Synchronisation module | 4 | Enables time synchronisation across chasses for high channel count tests |
| NI-9260 Analogue Output module | 5 | 2 channel AO Module ±4.24 V, 24-Bit ADC, 51.2 kS/s/ch |
| NI-9232 IEPE Analogue Input module | 43 | 3 channel IEPE AI module ±30 V, 24-Bit, 102.4 kS/s/ch, |
| NI-9213 Thermocouple module | 2 | 16ch thermocouple module ±78 mV, 24-bit ADC, 75 S/s |
| NI-9223 4ch Analogue Input module | 1 | 4 channel high sample rate AI module ±10 V, 16-Bit, 1 MS/s, |
| NI-9201 8ch Analogue Input module | 1 | 8 channel general use AI module 10 V, 12-Bit, 500 kS/s |
Sensors and Transducers
| Equipment type | Quantity | Description |
|---|---|---|
| ICP Accelerometers: PCB353B18 |
128 | Frequency range: 1 to 10kHz Sensitivity: 10 mV/g |
| ICP Force transducers: PCB208C02 |
4 | Force range: ± 100lb Sensitivity: 50 mV/lb |
